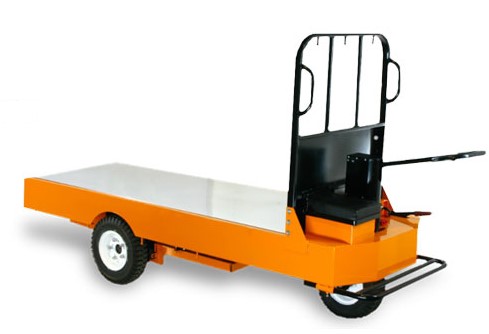

Power Wagon VC-1
-
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**MODEL VC-1 Dimension (L x W x H) 2870 x 855 x 1900 (mm) Platform Dimension (L x W x H) 2090 x 855 x 1900(mm) Tire Size FRT 400-10 x 1 Solid Tyre
RR 400-10 x 2 Solid TyeElectric Motor DC36/3 KW Controller CURTIS Acid-Battery 6V x 225Ah x 6 Charger AC110-240V DC36V 15A Charging duration >6hrs Axial Base 1620 mm Barke System Electromagnetic Brake Transmission System Synthetic Gear Box
(Combination of motor and differential Gear)Motor 3.0 KW Max Speed. > 15 km/hr Curising Range > 30km Loading Weight 1000 kgs Incline Capacity 6° loaded and 12° unloaded
-
Technical Data
** Due to the manufacturer's commitment to constant improvement. We reserve the right to alter specification without notice.**MODEL VC-1 Dimension (L x W x H) 2870 x 855 x 1900 (mm) Platform Dimension (L x W x H) 2090 x 855 x 1900(mm) Tire Size FRT 400-10 x 1 Solid Tyre
RR 400-10 x 2 Solid TyeElectric Motor DC36/3 KW Controller CURTIS Acid-Battery 6V x 225Ah x 6 Charger AC110-240V DC36V 15A Charging duration >6hrs Axial Base 1620 mm Barke System Electromagnetic Brake Transmission System Synthetic Gear Box
(Combination of motor and differential Gear)Motor 3.0 KW Max Speed. > 15 km/hr Curising Range > 30km Loading Weight 1000 kgs Incline Capacity 6° loaded and 12° unloaded
